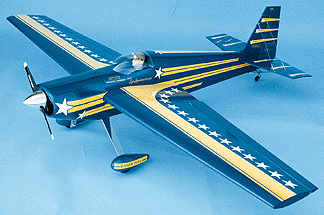

1/4 Scale Laser 200
Designed by Bob Godfrey
IMAA Legal & IMAC Legal
Not an ARF
Cat. No. 95217
The sporty aerobats for IMAA
events. This sleek, 72" span 1/4-Scale Laser 200 delivers contest-winning
aerobatics and looks with Lanier building ease. The fuse is built-up with ply
sides, the plug-in wings are foam, with an aluminum spar and balsa sheeting.
Vacu-formed wing cover, rear turtledeck and canopy, plus ABS cowl and wheelpants,
make the final, finished look easy to achieve. Formed aluminum gear included.
| Overall Fuselage Length: |
57 " |
| Wing Span: |
72 " |
| Fueselage Length: |
44-3/4 " |
| Wing Area: |
855 sq.in. |
| Rec. Engine Size: |
.60 - 1.80 2-Stroke |
| |
.91 - 1.20 4-Stroke |
| Radio Channels: |
4 |
| Flying Weight: |
7-1/2 - 9 lbs. and up |
| Fiberglass
Wheelpants & Cowl Available |
This
Lanier RC Balsa, Plywood, Plastic, Foam Kit Features:
| Vacuum Formed Fuselage
Turtledeck and Wing Cover |
Full Symmetrical Airfoil |
Parts for Complete
Built-up Tail Assembly |
| Foam Wing with Spruce
Spars, Partial Balsa Sheeting and Cap Stripping Required |
Hefty Pre-formed
Aluminum Landing Gear |
ABS Cowl and Wheel Pants |
| Built-up Fuselage with
CNC Router Cut Plywood Sides and Laser Cut Formers |
Spare Parts Available |
Fast Assembly with
Minimum Parts |
| Vacuum Formed Canopy |
No Hardware Included |
Meets IMAC Requirements |
| |
|
Easy-to-Follow Plans &
Instructions |
|
