Simple and Economical Durable Fun To Build Great Performance



The Best Little Helicopter around



If You Already Fly R/C Aircraft You Can Use Your Existing Aircraft radio-- if you wish.just buy 4 mini servos



Specifications

Main rotor diameter:

24in (610 mm)

Main rotor control type:

Bell/Hiller with dual mix ratios

Main rotor blade pitch adjustment:

Pre molded interchangeable blade grips
Main rotor blade type: Flexible-twisted-tapered-three high lift airfoils
Main rotor blade suspension: Dual flapping no damping full flapping And lead/lag hinges-blades foldable about horizontal and vertical axes
Main rotor shaft material: High strength spring steel
Main rotor max speed: 2000 rpm
Engine type: Norvel Vmax-7 (schnuerle ported with tapered slide-valve throttle/muffler)
Engine displacement: .074 cubic inches (1 cc)
Engine main bearing Bronze bushing
Engine cooling system: Passive (no fan required)
Engine/main rotor speed ratio: 11.3 to1
Clutch type: Centrifugal-one piece shoes
Tail rotor diameter: 7.5 in (191 mm)
Tail rotor blade type: Variable pitch-flexible-twisted-tapered
Tail rotor drive type Spring steel shaft with dual bevel gears
Tail rotor/main rotor speed ratio: 2.1 to 1
Fuselage length: 26.4 in (167 mm)
Height-ground to top of main rotor: 9.5 in (241 mm)
Weight-no fuel: 28 oz (795 grams) approx
Note that the Model 110 is a flying machine not a toy and is not meant for children. It must be assembled and operated with appropriate care.



    Flyer on Light Machines Radio Controlled Helicopters
  1213300117 Model 110 helicopter kit

Basic helicopter

with VMAX7 engine system

no gyro

$199.99
  1213300123 Corona Basic Heli kit

no gyro, no motor, no ESC

$199.99

1213300417

Includes:
(1) Model 110 helicopter kit with gyro
(1) Vmax-7 engine-with Freedom XL glow plug
(1) Std Accessory Pack
$299.99
  1213300424 Corona Electric Helicopter, no gyro

(1)Phoenix 35 Brushless ESC

(1)multiplex 3D brushless motor

(1)brushless motor accessories pack

(1)standard accessories pack



$419.99



The Norvel Vmax-6 helicopter engine takes the model 110 where you want it to go, on inexpensive 15 % nitro fuel. The special venturi and directional intake ports on this .06 cu. in.(1cc) Schnuerle-ported powerhouse are tuned for easier starting and extra lugging power. The rugged Vmax-6 crankshaft is supported by a durable bronze bushing for long life at maximum power. The unique Vmax-6 throttle/muffler includes a tapered slide-valve throttle for more precise linear throttle control. Engine exhaust is directed downward to keep your Model 110 clean and quiet.


  Parts Breakdown 1

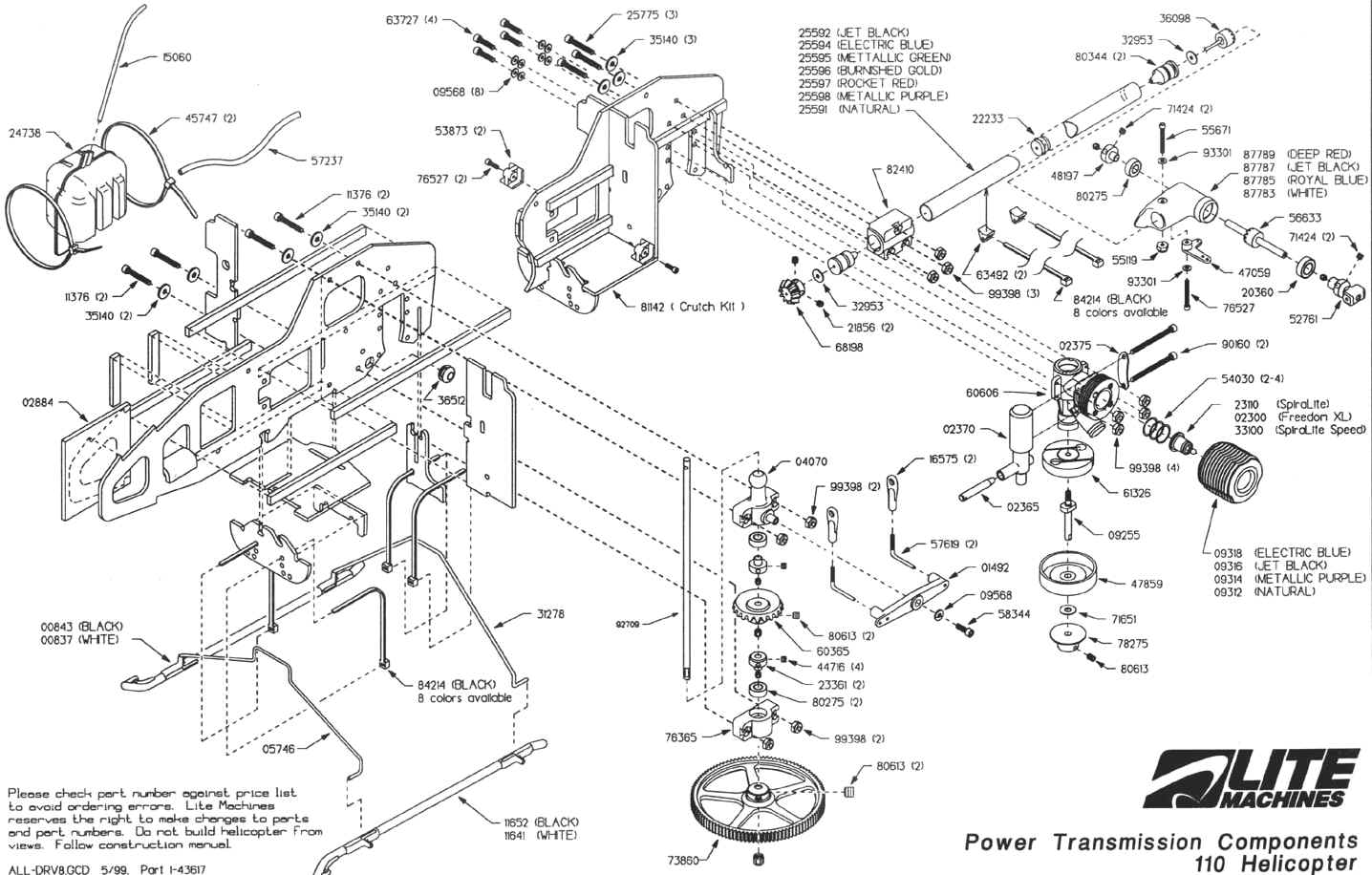

  Parts Breakdown 2
  1213300768 Gyro hub
  1213300837 Right skid White
  1213300843 Right skid Black
  1213301492 For/aft control arm
  1213302300 Freedom XL glow plug
  1213302330 Vmax-6 needle valve assembly
  1213302345 Vmax-6 crankshaft
  1213302390 Vmax-6 piston/cylinder set
  1213302395 Vmax-6 Vmax-6 cylinder head screws 4
  1213302400 Vmax-6 cylinder head gasket 5
  1213302884 Vibration isolation tape 2X4
  1213303495 Main rotor Z-link 4
  1213304070 Upper bearing block
  1213305746 Front landing gear struts
  1213309255 Clutch shaft Vmax
  1213309314 Vmax-6 heat sink metalic purple
  1213309316 Vmax-6 heat sink jet black
  1213309318 Vmax-6 heat sink electric blue
  1213309568 #4 steel washer 10
  1213310212 Mixing arm 2
  1213311376 4-40 X 5/8 socket cap screw 10
  1213311410 6-32 x 5/8in set screw
  1213311641 Left skid White
  1213311652 left skid black
  1213311773 light lube heavy oil 14.8 ml
  1213311892 3/16in universal ball 8
  1213312305 Decal set German military
  1213315060 Fuel tank filler tube
  1213316575 #2 ball link shank 4
  1213316651 Gyro eyelet
  1213317777 Canopy pack 1 set
  1213317789 Canopy pack 2 set
  1213317796 Canopy pack 3 set
  1213318816 Decal set rainbow stripes
  1213320360 7 X 13 X 4mm  ball bearing
  1213321339 Gyro scissor link upgrade
  1213321413 Gyro E-clips 8
  1213321541 Electric Starter w/ heli insert
  1213321543 1/8 x 1-3/4 hard dowel pin
  1213321856 6-32 X 3/16 setscrews 10
  1213322060 2-56 X 3/4in socket cap screws 10
  1213322233 TR shaft center bushing
  1213322774 Blade grip-6 degrees
  1213323361 Mr bearing collar with screws
  1213324008 TR pushrod
  1213324289 Subrotor pivot rod
  1213324438 Hs-80 gear set (metal)
  1213324738 Fuel tank
  1213324780 TR blade S2 4x10 black(2)
  1213325592 Tail boom Jet black
  1213325594 Tail boom electric blue
  1213325596 Tail boom burnished gold
  1213325597 Tail boom flame red
  1213325598 Tail boom metallic purple
  1213325775 4-40 x 3/4in socket cap screws 10
  1213326182 Follower arm
  1213327968 Gyro paddle 2
  1213328234 Vmax-7 piston/cylinder set
  1213329089 Subrotor stabilizer
  1213329505 10-32 x 1-1/2in SHCS(4)
  1213329601 Long Rotor conversion kit
  1213329732 HS-80/81 servo arm set
  1213329734 HS-80/81 servo mounting hardware
  1213329745 HS-80 gear set (plastic)
  1213330135 TR hub w/screws S2 metal
  1213331174 Vmax-7 clutch shaft
  1213332913 Operators guide gas/electric
  1213332953 #1 plastic washer Teflon (10)
  1213333333 Gyro Z-link 2
  1213333434 Gyro drive link 2
  1213334564 Arlton Gyro Stabilizer kit
  1213334775 TR blade S2 4x10 white (2)
  1213334850 TR blade S3 4x10 hot pink (2)
  1213335044 Gyro spindle/mount, preassembled
  1213335072 Crutch kit wood 116
  1213335140 #4 steel washer-oversize (10)
  1213335946 Tail rotor spider-LMH100
  1213336098 Tail drive wire w/gear (short)
  1213336512 Rubber grommet 3/16 X13/32
  1213337224 Vmax-7 upgrade kit (from Vmax-6)
  1213337370 Nylon clevis small (6)
  1213337755 Tail rotor spider link type
  1213337880 threaded rod 1in (2)
  1213338064 Crash Kit 116/117 helicopter
  1213338221 Spare-parts container
  1213338992 Left/right cyclic pushrod (2)
  1213339357 Hex wrench assortment
  1213340991 Rubber grommet 1/8 X 5/16 (4)
  1213341811 HS-81 gear set (plastic)
  1213343719 4-40 X 1/4in socket cap screw (10)
  1213344163 hook and loop fabric 1x6 (3)
  1213344252 Brushless motor accessory pack
  1213344716 8-32 X 1/8in setscrew (10)
  1213345005 3/32in x 5/8in hard dowel pin
  1213345747 8in nytie black (8)
  1213346177 LM connector w/tam (battery)
  1213346437 Throttle pushrod
  1213346516 Crash kit Corona 120m
  1213346645 2-56 X 3/8in socket cap screw qty 10
  1213347059 TR bellcrank, long
  1213347111 Aluminum keel blue (117M)
  1213347166 Vmax-7 throttle/muffler
  1213347436 4 in nytie deep red qty 20
  1213347440 4 in nytie cub yellow qty 20
  1213347518 Metal Frame Conversion kit 117MLS
  1213347583 #6 teflon washer
  1213347809 Vmax-7 cylinder head gaskets
  1213347859 Clutch bell
  1213348062 Vmax-7 glow plug washer
  1213348197 TR bearing collar with screws
  1213348243 Multiples 3d brushless motor
  1213348273 Swashplate race ring
  1213348477 Fastener assortment
  1213348560 Decal set model 110 windows
  1213350268 Tr pushrod threaded coupler (4)
  1213350566 Mixing arm/SP pushrod (2)
  1213350589 Aluminum keel purple (120M)
  1213351667 HS-81MG gear set (metal)
  1213352761 Tail rotor hub with screws
  1213353356 Spider slider
  1213353614 Brushless motor accessories pack
  1213353873 Canopy mounting bracket (2)
  1213354030 Copper glow plug washer (10)
  1213354084 Vmax-7 spherical seal (2)
  1213354294 Tail boom long purple
  1213354592 Phoenix 35 brushless ESC
  1213355119 2-56 nylon locknut (10)
  1213355220 HS-81MG micro servo
  1213355671 2-56 x 5/8in socket head cap screw (10)
  1213355815 Vmax-7 heat sink, natural
  1213355874 TR blade S2 4x10 yellow
  1213355903 Aluminum keel blue (117MLS)
  1213356591 Vmax-7 choke 4mm
  1213356620 Tail boom long black
  1213356633 Hollow TR shaft w/gear
  1213357237 Fuel tubing silicone
  1213357619 Swashplate L-link (2)
  1213357718 Elec. starter adapter hub with screw
  1213357971 Crutch kit wood 117
  1213358344 4-40 x3/8in SHCS (10)
  1213358782 LM to tamiya charging adapter
  1213359845 Main rotor hub
  1213360259 Vmax-7 needle valve assembly
  1213360365 Crown gear with screws
  1213360493 Decal set racing stripes
  1213361326 Vmax-6 clutch shoes
  1213361766 Lil Squeezer fuel system
  1213362051 Feathering plate
  1213362234 Antenna tube (116M-102M)
  1213362544 1/16in x 1/2in hard dowel pin
  1213363024 4in nytie hot pink
  1213363492 Pushrod guide (2)
  1213363648 Elec. starter thrust washer
  1213363678 Antenna bracket
  1213363727 4-40 x 1/2in SHCS (10)
  1213364273 MR blade S2 10x5 white
  1213365257 4-40 x 7/8in socket cap screw
  1213365726 Freedom 7L glow plug
  1213365864 Lite lube grease 1/4oz
  1213366670 Vmax-6 throttle muffler
  1213366722 Whip antenna 2piece
  1213367111 Litebrite commutator cleaning pads (4)
  1213367682 Construction manual (120M)
  1213368198 TR front pinion gear with screws
  1213368669 Throttle pushrods
  1213369134 Vmax-7 filter screen medium
  1213370707 Vmax-7 engine, no plug
  1213370734 MR bladeS2 13x0 yellow
  1213371101 Elec. starter heli adpater
  1213371424 6-32 x 1/8in setscrew (10)
  1213371582 TR pushrod (120M)
  1213371651 #8 steel washer (10)
  1213372401 Metal Frame conversion kit 120m (Corona)
  1213372503 Decal set US military
  1213373758 Teeter
  1213373860 Main spur gear with screws
  1213374145 Sandpaper asst
  1213375926 Servo standoff, .25inOD x .19inH
  1213376015 Tail boom bracket kit
  1213376034 1/16in x 3/4in hard dowel pin
  1213376365 Lower bearing block
  1213376527 2-56 x 1/2in SHCS (10)
  1213377267 TR pushrod (120)
  1213378048 Tail boom bushing kit
  1213378195 Piezo Gyro TR conversion kit
  1213378275 Starter cone with screw
  1213378707 Servo arm connector kit
  1213379039 Turbine exhaust tube
  1213380275 5 x 11 x 4mm ball bearing (2)
  1213380344 TR shaft end-bushing (2)
  1213380613 8-32 x 3/16in setscrew (10)
  1213381111 Vmax-7 clutch shoes
  1213381730 Universal body mounting kit
  1213381855 1/8in loose ball bearing (20)
  1213382051 Tail fin white
1213382060 Tail fin forest green
  1213382081 Tail fin neon green
1213382083 Tail fin hot pink
1213382232 TR hub w/screws S2 plastic
1213382383 MR blades S2 13x0 black
1213382410 Tail boom bracket
  1213382691 Metal Frame Conversion kit 116M
  1213383973 Metal Frame Conversion kit 117M
  1213384214 4in nytie black (20)
1213384289 Gyro paddle grip (2)
1213384945 Elec. starter motor (12v)
  1213386027 10-32 x 5/16in setscrew (10)
  1213386607 Pivot mount with screw
  1213387049 Fore/aft cyclic pushrod (2)
  1213387239 1/16in x 1/4in hard dowel pin
  1213387787 TR gearbox black
  1213388429 Spider slider dual gain
  1213390160 4-40 x 2-2/4in socket cap screw (8)
  1213390395 Swashplate outer race
1213390637 Gas/Elec Frame conversion kit
1213391461 MR blades S2 13x0 hot pink
1213391828 Electro fusion brush set
1213391836 Electric motor mount
  1213391979 Swashplate inner race
  1213392234 Decal set UK military
  1213392454 HS-81 micro servo
  1213392683 Main rotor blade black
  1213392709 Main rotor shaft
  1213392743 Lil Squeezer fuel cap assembly
  1213393301 #2 steel washer (10)
  1213393350 TR push-pull rod
  1213394098 Blade grip 4 degrees
  1213394480 Du-Bro 668 Kwik Start with charger
1213394610 Tail rotor blade S1 3.75x10 black
1213395874 Pinion gear w/collar 9 teeth
1213396108 Hook & loop fabric 2x4 (2)
1213396575 Gyro spindle dual gain
1213397581 M2.5-0.45x10mm SHCS (6)
1213398406 #2 plastic washer Teflon (10)
1213398683 LM connector w/term (ctrl/chrgr) (2)
  1213398748 4in nytie forest green (20)
  1213399398 4-40 nylock nut (10)
  1213399929 Follower link



[ Lite Machines ] Kyosho Heli ] JR Heli ]


HOBBY SHOP

Order-Hobby Shop

ROSES DOLL HOUSE

Order-RosesDollHouse

CRAFT KING

Order-Craft King

414-461-6013

262-781-9660

262-781-9660

Fax 414-461-6045

Fax 262-373-0354

Fax 262-373-0354

  Please call, fax
E-mail
onehobby@happyhobby.com

E-mail
Hobby Shop
 onehobby@happyhobby.com

E-mail
Roses Doll House

E-mail
Craft King


Prices are subject to change without notice.
Copyright 1975-2016 [Happy Hobby Inc.]. All rights reserved.
Webmaster Scott Jones
