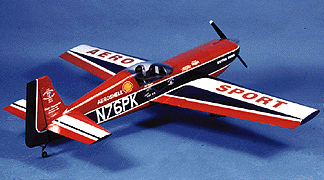

1/4 Scale Extra 300S
Designed by Bob Godfrey
IMAA Legal & IMAC Legal
Not an ARF
Cat. No. 96222
Every bit as aerobatic as the
full-size show-stopper! Built-in assembly aids help create true-scale styling:
pre-bent aluminum gear; pre-cut foam cores for the wings; and die-cut ply parts
for the fuselage and tail group. Requires a 4-channel radio, 2-stroke 91-1.8 or
4-stroke 1.20-1.84 engine.
| Overall Fuselage Length: |
62 " |
| Wing Span: |
72 " |
| Fueselage Length: |
48-3/4 " |
| Wing Area: |
953 sq.in. |
| Rec. Engine Size: |
.91 - 1.80 2-Stroke |
| |
1.20 - 1.84 4-Stroke |
| Radio Channels: |
4 |
| Flying Weight: |
9 - 12 lbs. and up |
| Fiberglass
Wheelpants & Cowl Available |
This Lanier RC Balsa, Plywood, Plastic, Foam Kit Features:
| Vacuum Formed Fuselage
Turtledeck and Wing Cover |
Full Symmetrical Airfoil |
Balsa sheeted foam Tail
Assembly |
| Foam Wing with Spruce
Spars, Partial Balsa Sheeting and Cap Stripping Required |
Hefty Pre-formed
Aluminum Landing Gear |
ABS Cowl, Wheel Pants
and Landing Gear Cuffs |
| Built-up Fuselage with
CNC Router Cut Plywood Sides and Laser Cut Formers |
Spare Parts Available |
Fast Assembly with
Minimum Parts |
| Vacuum Formed Canopy |
No Hardware Included |
Meets IMAC Requirements |
| |
|
Easy-to-Follow Plans &
Instructions |
|
